HC-9

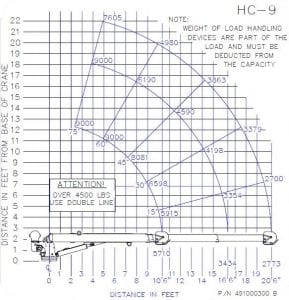

Capacity9,000 lbs (4,082 kg) at 5 ft (1.52 m)
Rating60,000 ft-lb (8.30 t-m)
Length20.5 ft (6.2 m) fully extended
Weight1,755 lb (796 kg)
ChassisClass 6 (26,500 GVWR)
BodyTitan 60
Category: Tag:

Features and Benefits of NexStar™ Models

  • Proportional control of multiple functions simultaneously and independently
    • Adjust any function anytime to a different speed, for total control over the load
  • Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan® crane body
    • Prevents operation in unsafe, unlevel conditions
  • Automatic stop at 100% load capacity
    • Keeps people, equipment, and loads safer
  • Adjustable speed settings; from 25% to 100%
    • Enables fine tuning of speeds for total control over the load
  • The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English
    • No codes to look-up or memorize; operator views precise percentage load capacity
  • NexStar available with either tethered or fully-featured wireless remote options
    • Your choice for preferred control method
  • Transmitter is IP66 rated and CE certified
    • Sealed and water protected for maximum durability

Requirements

  • Truck must be equipped with 772020-000 outriggers or equal
  • 26,500 lbs. GVWR minimum chassis requirement. (Does not include bodies or accessories)
  • Minimum 900,000 in.-lbs. RBM
  • Engine tachometer and throttle control required for proper crane installation

Control Options:

  • NexStar™ III wireless (tether option)
  • Hard-Wired

Weight

1,500 lbs (680 kg)

Stowed Boom Length

13′ 4″ (3.96 m)

Extended Boom Length

20′ 6″ (6.2 m)

Width

1′ 11¼” (.59 m)

Height

2′ 8¾” (.83 m)

Base Plate Dimensions

16.75″ x 16.75″ (0.43 m x 0.43 m)

Single Line Speed

60 ft/min (18.3 m/min)

Boom Down

20-28 seconds (full stroke of cylinder)

Boom Retract

18-24 seconds (full stroke of cylinder)

Hydraulic Requirements

13 gpm (49 L/min) at 2,750 psi (189.6 bar) – Hardwired, 13-17 gpm (49-64 L/min) at 2,750 psi (189.6 bar) – Nexstar

Cable

95 ft (28.96 m) of 3/8″ (9.52 mm) EIPS IWRC Galvanized Wire Rope

Standards

ANSI B30.5, OSHA 1910.180

Warranty

2 year warranty
